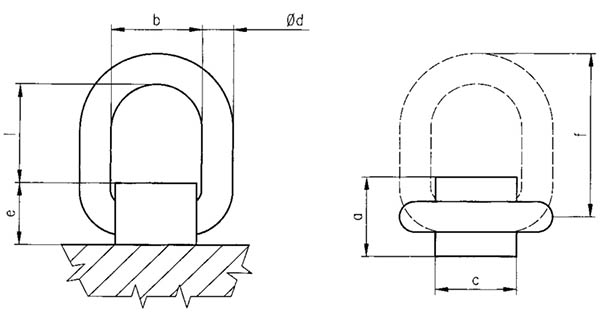

德国JDT焊接吊点TAPS型 JDT焊接吊环
Attachment-point,weld-on type

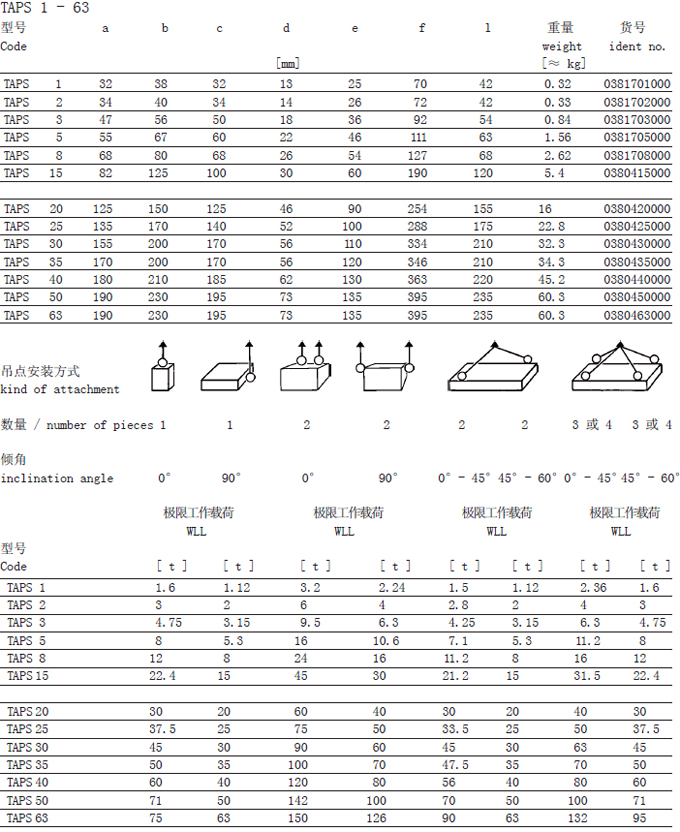

焊接式吊点承载能力1吨-63吨
优点
—紧凑式设计
—链环可180度摆动
—焊接固定扣使用符合EN10025标准的S355JR材料
—从TAPS20起，焊接固定扣采用25CrMo4材料（材料号1.7218）.
Weld-on sling point in working load limits of 1-63t.
—The advantages:
—Compact design
—Secured four times against breakage
—D-link swings 1800
—Weld-on shackle made of material
S355JR according to EN 10025
—Weld-on shackle ≥TAPS20 made of material 25CrMo4,
—Material no.1.7218
在非均匀对称起吊情况下，视双肢或3/4肢链条的极限工作载荷等同于单肢链条900 时的极限工作载荷。
