▲Heavy type design, the maximum load of4000 kg

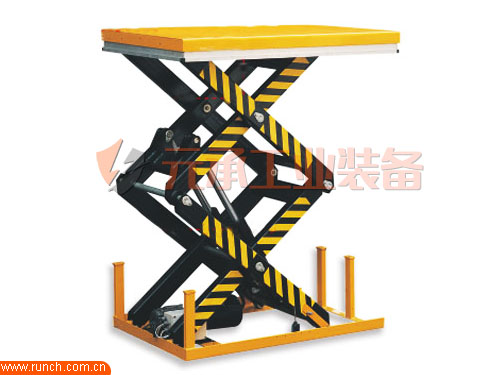

▲The double shear fork design, high hoisting height, up to2050 mm
▲EN1570 standard and the ANSI/ASME standards
▲About Europe imported high quality power supply components
▲With upper and lower button to stop button and 24 v low voltage control box
▲The overload safety valve and pressure compensation type flow valve, accurate control the drop speed
▲ About mesa bottom is equipped with safety device to protect mesa stop falling when encounter obstacles
▲With reflux device and check the heavy oil cylinder, mesa down while preventing blowout
▲About security clearance between shear fork bracket, can avoid task
▲ Moving parts with self-lubricating guide ring
▲Removable rings, easy installation and maintenance of mesa
|
产品编号 |
单位 |
LZP3010 |
LZP3020 |
LZP3040 |
|
额定载重 |
kg |
1000 |
2000 |
4000 |
|
最低高度 |
mm |
305 |
360 |
400 |
|
最高高度 |
mm |
1780 |
1780 |
2050 |
|
平台尺寸L×W |
mm |
1300×820 |
1300×850 |
1700×1200 |
|
基座尺寸L×W |
mm |
1266x680 |
1255x785 |
1600x930 |
|
起升时间 |
S |
35-45 |
35-45 |
55-65 |
|
电源组件 |
V/HZ |
380V/50HZ |
||
|
净 重 |
|
210 |
295 |
520 |
